3D inspection

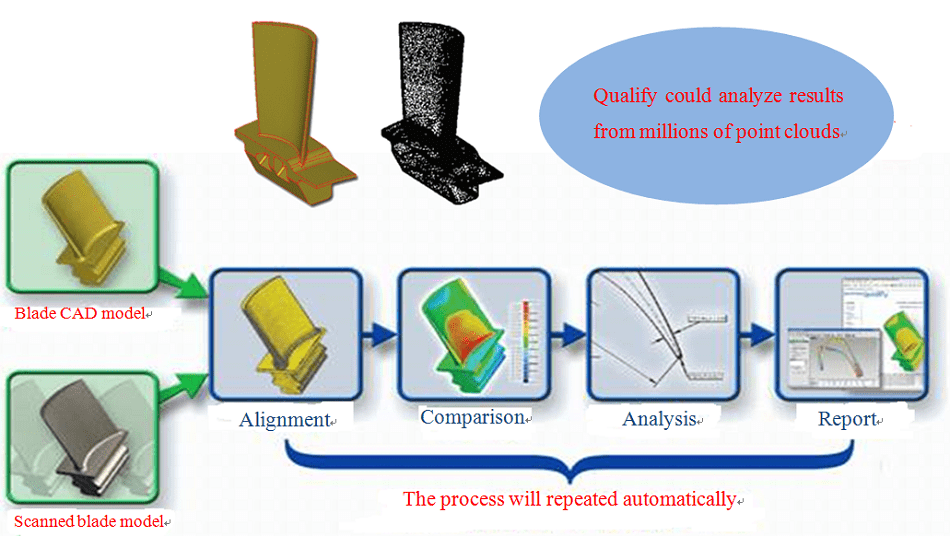

3D inspection process


3D scanning inspection is a full-scale detection technology. The basic method is to perform partial or full-scale 3D scanning of the parts to be inspected, and compare the obtained 3D point cloud with the 3D digital model to generate a color error coded picture and an intuitive detection report. It is convenient, fast, and accepted by the manufacturing industry.





Inspection tools are costly and can't adapt change of car structure.

Programmable robot arm + scanner complete scan of the door and front and rear cover boundaries
Geomagic Qualify 3D inspection software automatically processes scanned data and outputs reports

Save millions of costs of  inspection tools.
5 minutes to complete testing and reporting.


Scanners recommended

Structured light 3D scanner

Handheld laser 3X/7X/SX
