Handheld 3d Scanner- 3DSHANDY-49LS

Short Description:

3DSHANDY-49LS is a handheld 3d scanner with high work efficiency and high scanning detail performance.

Handheld design, easy to carry, ready to use, strong adaptability.

Advanced blue light technology, 13 pairs of cross laser beams + 11 pairs of fine scanning laser beams + 1 deep-hole scanning laser beam.
Dual industrial cameras, automatic marking point stitching technology with scanning software, supporting photogrammetry and self-calibration technology.
The scanning plan can be flexibly formulated according to user needs.


Product Detail

Parameter

Application Cases

Product Tags

Introduction of handheld laser 3D scanner

3DSHANDY-49LS Characteristics

3DSHANDY-49LS is a handheld 3d scanner with high work efficiency and high scanning detail performance.

Advanced blue light technology, 13 pairs of cross laser beams + 11 pairs of fine scanning laser beams + 1 deep-hole scanning laser beam.
Industrial-grade wide range 3D scanning system.

The scanning plan can be flexibly formulated according to user needs.

● Portable design

Small and portable, easy to carry, handheld design for arbitrary scanning

● Extensive scanning applications

It can be used in various environments and three-dimensional modeling of the surface of different sizes of workpieces. One machine has multiple functions.

● Easy to learn and understand

Those who have no experience in operation can master various operations and calibration procedures proficiently after training

● High efficiency

The output point efficiency of a single frame is increased by more than 3 times, and the measurement rate is as high as 1.6 million measurements per second

● High adaptability

A variety of scanning modes are intelligently guided, black, reflective materials and multi-color can be easily dealt with, and the range is more adaptable

● Detail scan

The resolution of fine mode is up to 0.01mm, the real-time rendering speed and effect are optimized, and the details of the scanning process are clearly visible

● Reduced preliminary work

Reduced number of target reflection marking points

● Scanning format

Scanning format up to 1400×1100mm

Application Cases

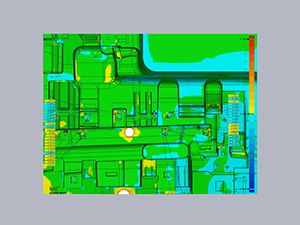

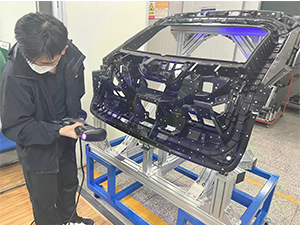

Automobile Industry

btn7

  Competitive product analysis
· Automobile modification
· Decoration customisation
· Modeling and design
· Quality control and parts inspection
· Simulation and finite element analysis

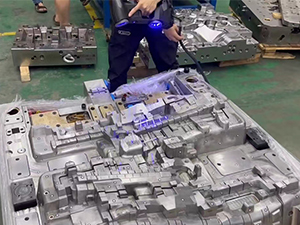

Tooling Casting

btn7

· Virtual assembly
· Reverse engineering
· Quality control and inspection
· Wear analysis and repair
· Jigs and fixtures design, adjustment

Aeronautics

飞机模型

· Rapid prototyping
· MRO and damage analysis
· Aerodynamics & stress analysis
· Inspection & adjustment of parts installation

3D Printing

包装设计

· Molding inspection
· Reverse design of molding to create CAD data
· End products comparison analysis
· Scanned data can be used for 3D printing directly

Other Area

包装设计

· Education and scientific research
· Medical and health
· Reverse design
· Industrial design


  • Previous:
  • Next:

  • Product model 3DSHANDY-49LS
    Light source 49 blue laser lines (wavelength: 450nm)
    Measuring speed 2,870,000points/s
    Scanning mode Standard mode Deep hole model Precision mode
    26 crossed blue laser lines 1 blue laser line 22 parallel blue laser lines
    Data precision 0.02mm 0.02mm 0.01mm
    Scanning distance 1000mm 1000mm 450mm
    Scanning depth of field 550mm 550mm 200mm
    Resolution 0.01mm (max)
    Scanning area 1400×1100mm (max)
    Scanning range 0.1-10 m (expandable)
    Volume precision 0.02+0.03mm/m
    0.02+0.015mm/m Combined with HL-3DP 3D photogrammetry system (optional)
    Support for data formats asc, stl, ply, obj, igs, wrl, xyz, txt etc., customizable
    Compatible software 3D Systems (Geomagic Solutions), InnovMetric Software (PolyWorks), Dassault Systemes (CATIA V5 and SolidWorks), PTC (Pro/ENGINEER), Siemens (NX and Solid Edge), Autodesk (Inventor, Alias, 3ds Max, Maya, Softimage), etc.
    Data transmission USB3.0
    Computer configuration (optional) Win10 64-bit; Video memory: 4G; processor: I7-8700 or above; memory: 64 GB
    Laser safety level ClassⅡ (Human eye safety)
    Authentication number (Laser certificate): LCS200726001DS
    Equipment weight 920g
    External dimension 290x125x70mm
    Temperature / humidity -10-40℃; 10-90%
    Power source Input:100-240v, 50/60Hz, 0.9-0.45A; Output: 24V, 1.5A, 36W (max)
