DO series large-size 3D printers-FDM 3D printer

Short Description:

The build volumes are:

400*400*500mm

500*500*600mm

600*600*1000mm

Features:

The build volume is large, the stability of the equipment is strong, and the accuracy is high. The products are mostly used in industries such as school education, maker creation, cartoon hand-made, industrial parts, consumer electronics and other industries.


Product Detail

Basic parameter

Product Tags

Features:

The build volume is large, the stability of the equipment is strong, and the accuracy is high. The products are mostly used in industries such as school education, maker creation, cartoon hand-made, industrial parts, consumer electronics and other industries.



Application:

Prototype, education and scientific research,cultural creativity,lamp design and manufacturing,cultural creation and animation,art design

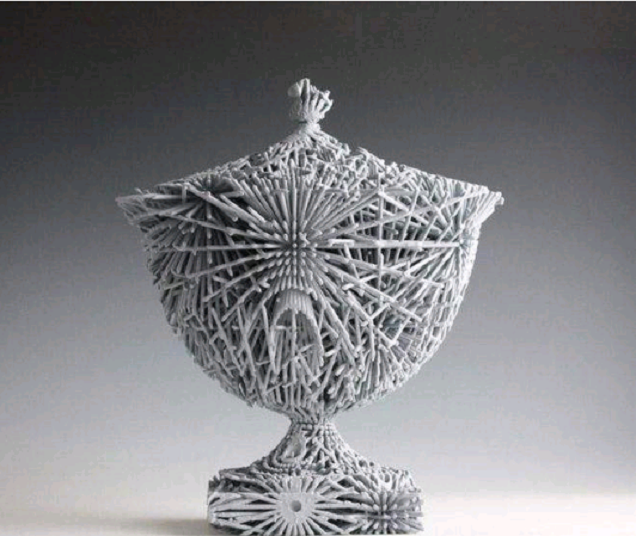

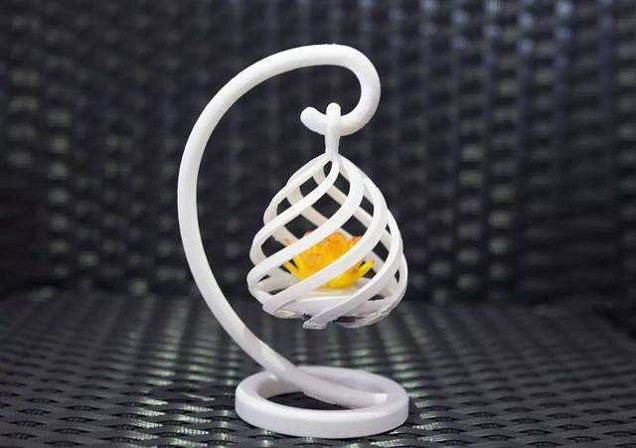

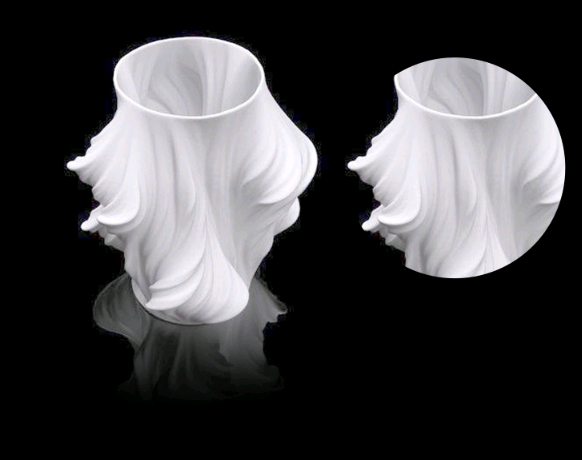

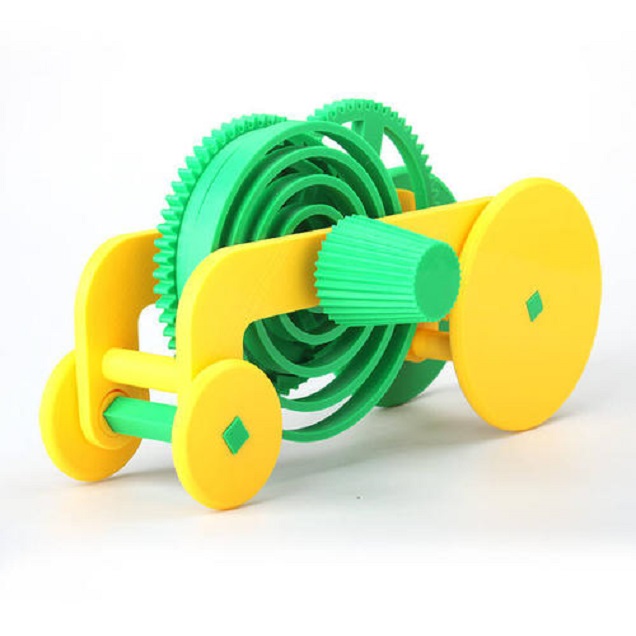

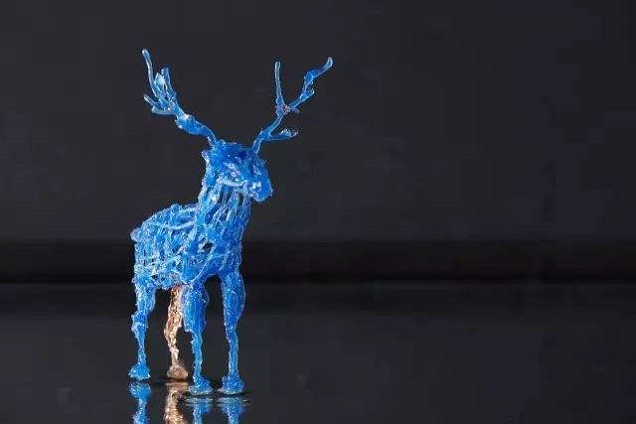

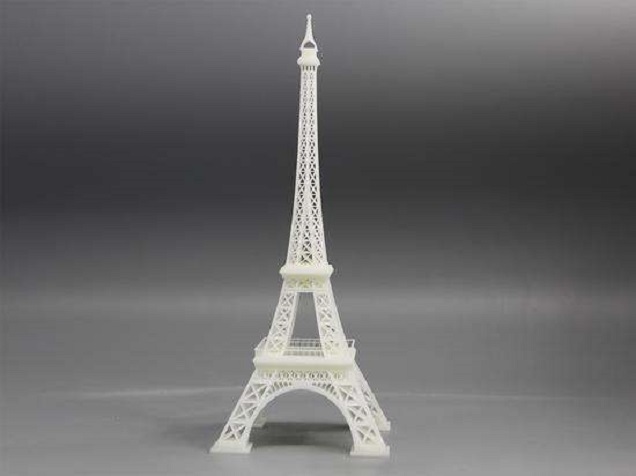

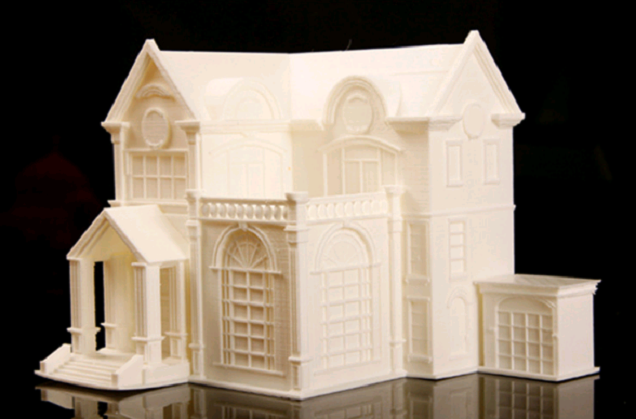

Print models display

timg (1) 99 7 5


  • Previous:
  • Next:

  • Model

    DO400

    DO500

    DO600


     1  2  3

    Technology

    FDM(Fused deposition melting)

    Build volume

    400*400*500mm

    500*500*600mm

    600*600*1000mm

    Layer thickness

    0.05-0.3mm

    0.05-0.6mm

    Print accuracy

    0.1mm

    0.2mm

    Print speed

    30-150mm/s

    Hot bed temperature

    0-80°C

    Extruder quantity

    1(Dual extruders are optional)

    Nozzle diameter

    0.4mm(optional)

    Nozzle temperature

    280°C

    Material

    PLA/ABS/TPU/PETG/Carbon fiber/wood etc.

    Material diameter

    1.75mm

    Power supply

    110V-220V/15A

    Rated power

    360W

    Operation language

    CN/EN/RU (8 languages)

    File format

    gcode/STL/OBJ

    Slicing software

    cura/S3D(compatible with 3rd party software)

    Operation systems

    Windows series/Mac OS/Linux

    Print mode

    SD card/USB/WiFi optional

    SD card/USB/U disk/WiFi optional

    Automatic power off after printing

    Optional
